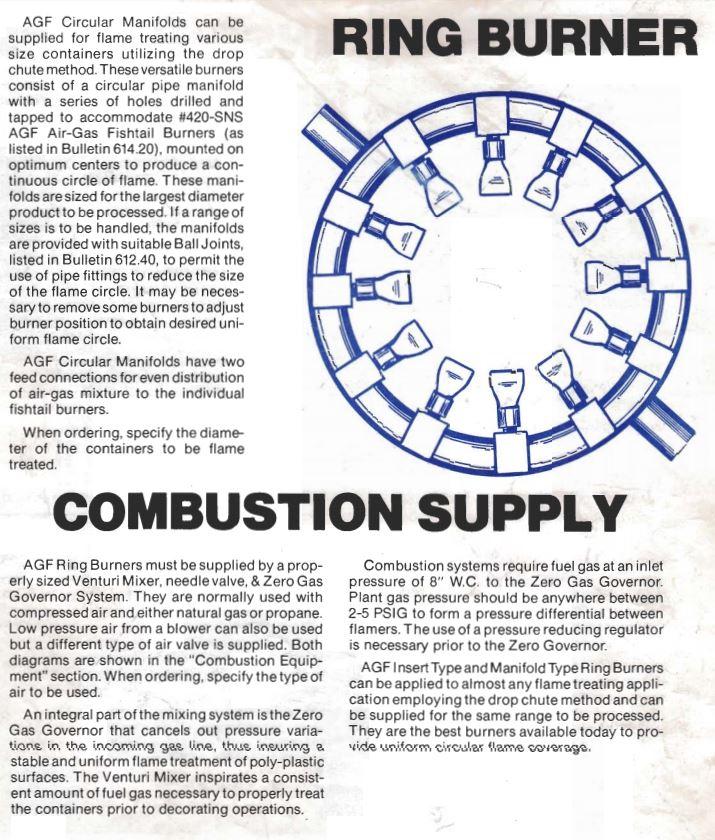

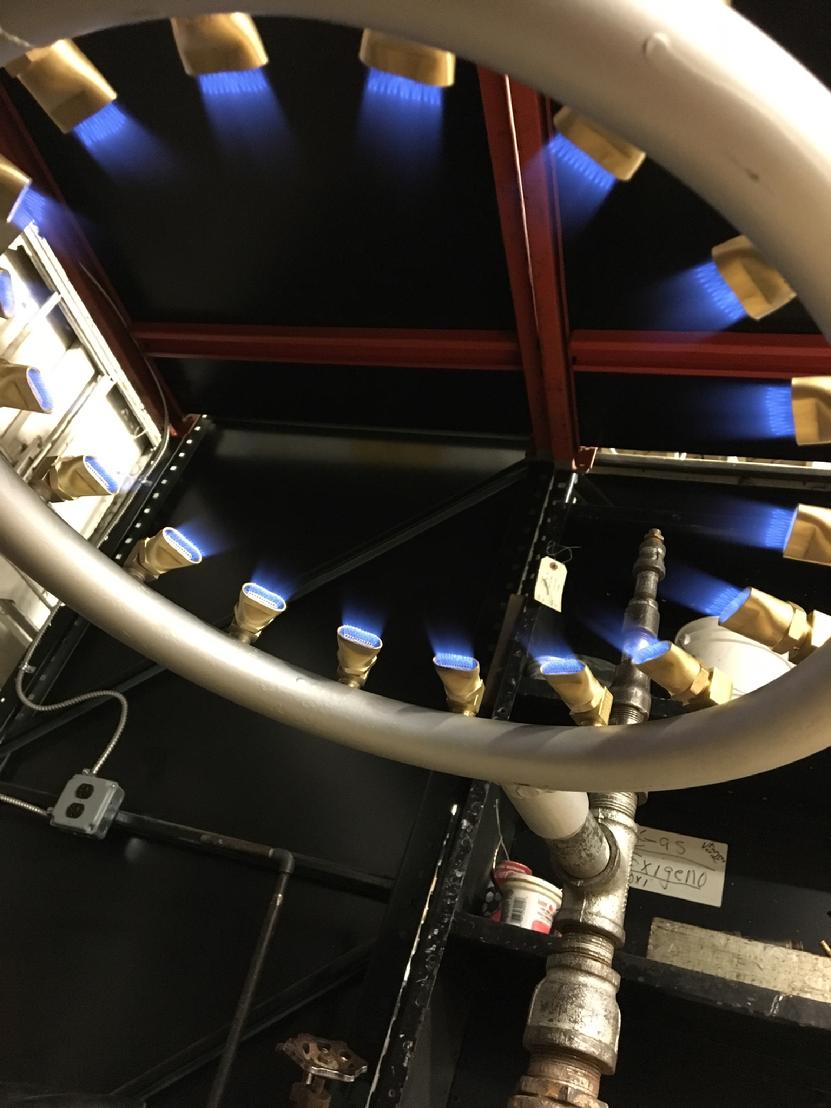

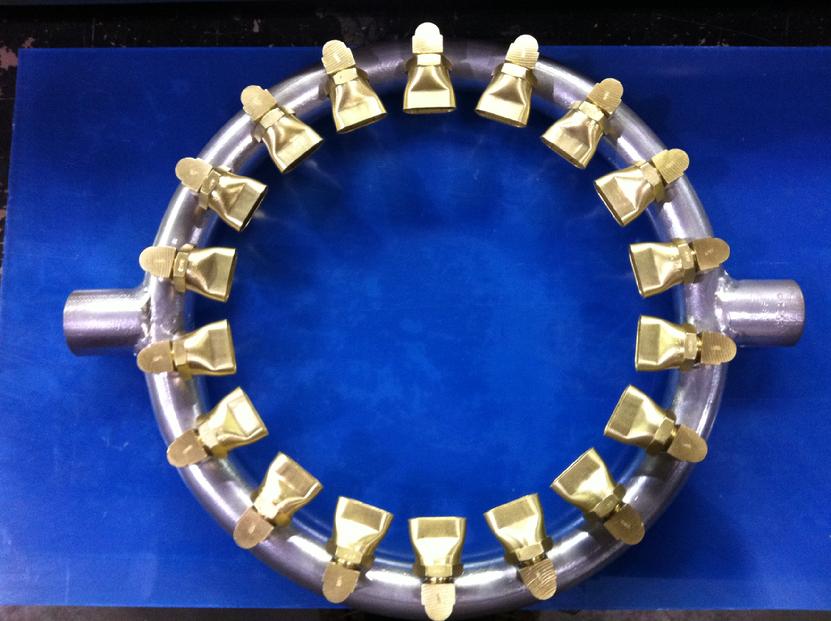

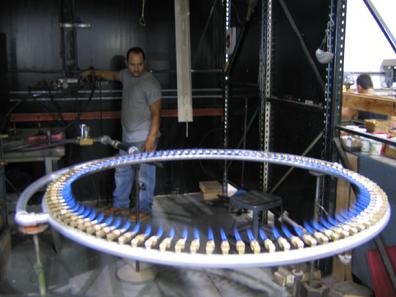

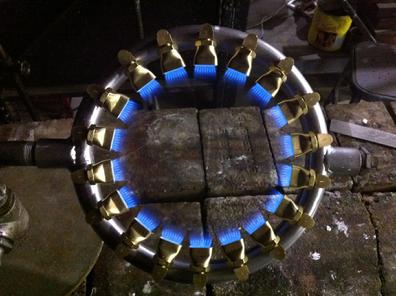

AGF Burner circular manifolds can be supplied for flame treating various size containers utilizing the drip chute method. These versatile burners consist of a circular pipe or aluminum manifold with fishtail burners mounted on optimum centers to produce a continuous circle of flame. Manifolds can be fabricated for any size container or process and are often outfitted with ball joints to maximize burner position to obtain a desired uniform flame. These are the best burners available today to provide uniform circular flame coverage. Please contact us for standard or custom applications.
90 degree ring burner: Flame 14.5" ID diameter. 11" flame length, Fig. 11-55 insert, center feed

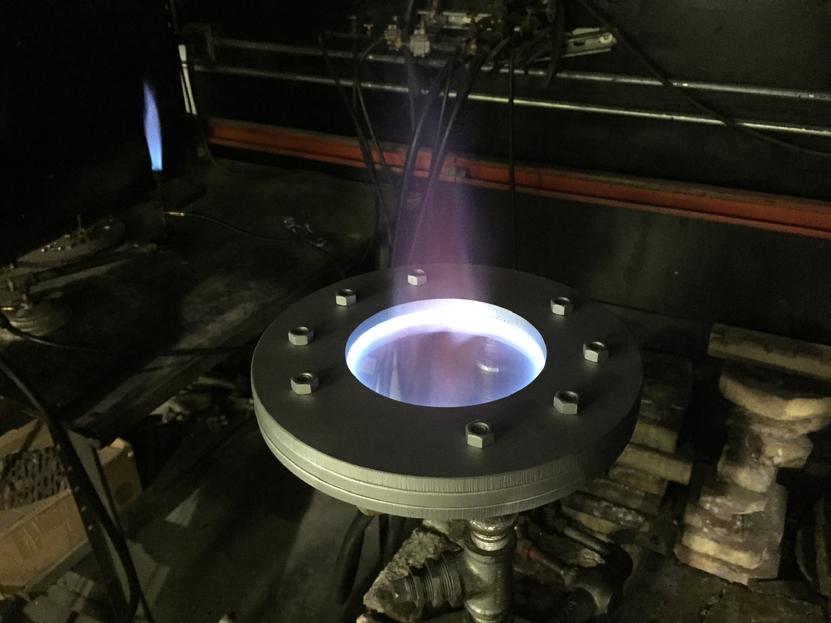

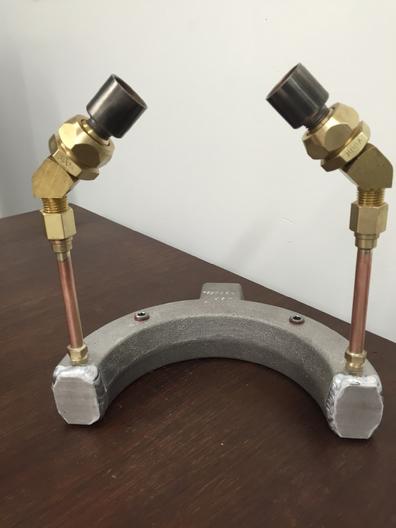

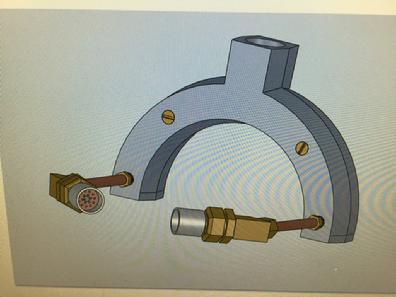

RBX-12 ring burner-90 degree section

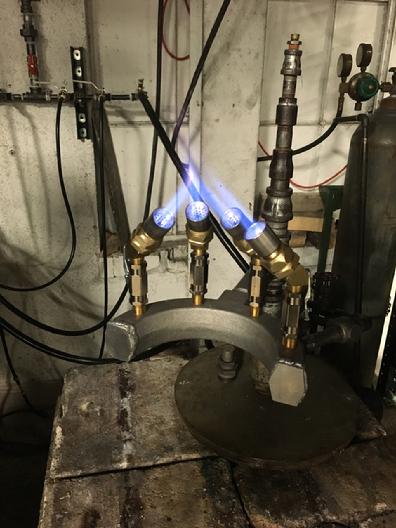

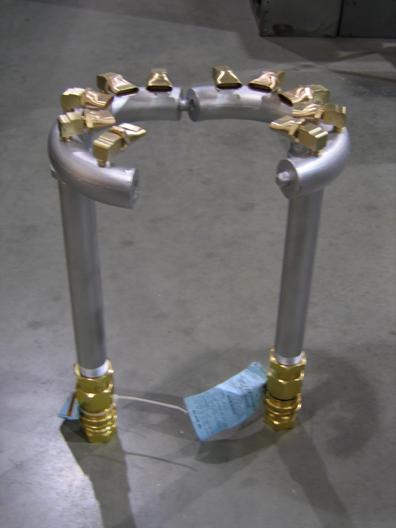

9.5" ID two section ring burner. Two sections of 120 degrees, 1/2" NPT female inlet (1 for each 120 degree section) -to be used with 4 equally spaced 1542D's- 90 degree brass elbows included-4 on off valves (1/4")

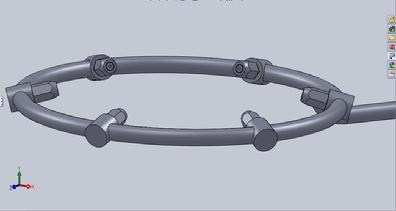

412Z-6(drawing)

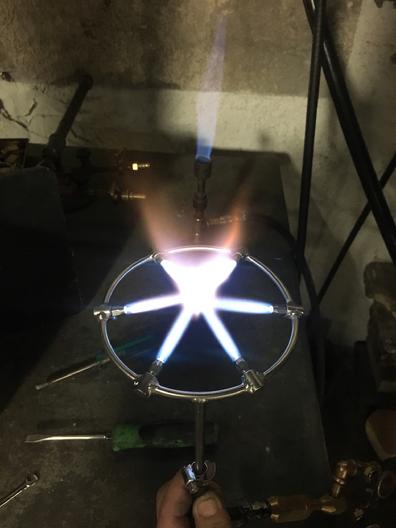

412Z-6: custom torch; 5" OD ring with 6 burner outlet couplings - 1/4" -27; 15 degree angle burner direction. Includes 6 #8DX burners. 1/4" OD Tube connection (Stainless Steel).
Note: custom sizes are available upon request, just email: sales@agfburner.com for ribbon ring burners and specify the insert(see ribbon burners) or manifold style. Or Call: 732.730.8090
